Product Info

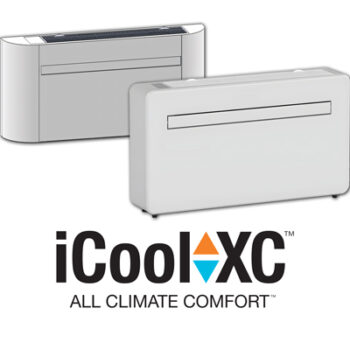

The iCool XC™ is sleek and powerful. It’s the essence of HVAC elegance, compatible with any style or decor. All Electric, All Climate Comfort™ delivers up to 25% greater efficiency with Zero Emissions.
Compact and versatile, this unit is engineered with advanced heat pump and inverter technology and requisite R-32 refrigerant. The iCool XC is the best value in its class for durable optimal performance under a wide range of construction and climate conditions.
Category: New Construction/Retrofit
Products: RSXC09-DH
Specifications
| Series Model # | 8RSXC09-DH | |
| Cooling Capacity (Btu/h)2 | 7,700 | |
|---|---|---|
| Cooling Capacity Range (Btu/h) | 3,000 – 15,000 | |
| SEER2 | 16.4 | |
| Heating Capacity (Btu/h)3 | 7,600 | |
| Heating Capacity Range (Btu/h) | 3,000 – 16,000 | |
| HSPF23 | 8.2 | |
| Electric Heater (W) | N/A | 1,000 |
| Electric Heater (A) | N/A | 4.8 |
| Voltage | 115 | 208 |
| Current in Cooling Operation (Amps) | 6.1 | 3.4 |
| Power in Cooling Operation (Watts) | 703 | |
| Current in Heating Operation (Amps) | 5.8 | 3.2 |
| Power in Heating Operation (Watts) | 670 | |
| MCA | 16 | 14.6 |
| MOCP | 20 | 15 |
| Airflow (CFM) | 310 | |
| Outside Air (CFM) 3 (Optional) | 40 | |
| Weight (lbs) | 84 | |
| LOW AMBIENT PERFORMANCE | ||
| Heating Capacity @ 22°F | 6,600 | 6,600 + 3,400 Electric Heat |
| COP @ 22°F | 2.44 | 2.44 |
| Heating Capacity @ 13°F | 6,100 | 6,100 + 3,400 Electric Heat |
| COP @ 13°F | 2.00 | 2.00 |
| Heating Capacity @ 5°F | 5,600 | 5,600 + 3,400 Electric Heat |
| COP @ 5°F | 1.79 | 1.79 |
| Heating Capacity @ 0°F | 5,300 + 3,400 Electric Heat | 5,300 + 3,400 Electric Heat |
| COP @ 0°F | 1.56 | 1.56 |
| Specification Notes: 1. Performance data according to CAC AHRI 210/240 standard. 2. Rated performances in cooling mode @ 80°F/67°F DB/WB Indoors and 95°F/75°F DB/WB Ambient 3. Rated performances in heating mode @ 70°F/60°F DB/WB Indoors and 47°F/43°F DB/WB Ambient 4. Performance data based on R32 green refrigerant. 5. Electric Heater to run with heat pump when temperature falls below 23°F. 6. Specify Style A or Style B when ordering. |
||
iCool XC FAQ
The iCool-XC™ is a wall-mounted, all-electric air source heat pump that delivers All Climate Comfort™ with Zero Emissions. It both heats and cools spaces efficiently using advanced inverter and heat-pump technology based on eco-friendly R32 refrigerant.
The iCool-XC™ offers up to 25% greater efficiency than typical units, operates quietly with whisper-level sound proofing, and combines sleek modern design with robust steel construction for durability and style.
Its compact dimensions are approximately 45.63″ (W) × 7.75″ (D) × 21.75″ (H), making it easy to fit in any room without intruding on the interior design.
No. Installation is simple and seamless. Only two small 8″-diameter wall openings are needed for air inlet and exhaust, resulting in minimal disruption to walls or façades.
Unlike plastic-cased units, the iCool-XC™ features a steel enclosure with a designer-grade baked powder-coat finish, ensuring long-term strength and visual appeal.
- Cooling Capacity: 7,700 BTU/h (range 3,000 – 15,000)
- Heating Capacity: 7,600 BTU/h (range 3,000 – 16,000)
- SEER2 Rating: 16.4
- HSPF2 Rating: 8.2
Yes. The iCool-XC™ is a Cold Climate Air Source Heat Pump (ccASHP) certified by NEEP, with partial cold-climate operation down to 23°F and supplemental electric heat below that temperature.
At low ambient temperatures, the unit delivers:
- 22°F: 6,600 BTU + 3,400 BTU electric heat (COP ≈ 2.44)
- 13°F: 6,100 BTU + 3,400 BTU electric heat (COP ≈ 2.00)
- 5°F: 5,600 BTU + 3,400 BTU electric heat (COP ≈ 1.79)
The iCool-XC™ uses R32 green refrigerant, which has a lower global-warming potential than older refrigerants like R410A and helps enhance overall energy efficiency.
The iCool-XC™ comes standard with the Habitat Wireless Thermostat, offering four modes (Heat, Cool, Dehumidify, Fan) and smart control capabilities through a mobile app (smart app module sold separately).
Yes. The unit includes a 24-hour programmable timer and is compatible with Nexus Home Automation Products for expanded smart-home integration.
No. The system uses whisper-quiet sound proofing, making it one of the quietest units in its class and well-suited for residential and hospitality environments.
Yes. Its high efficiency helps it qualify for various state, federal, and local rebates and tax credits, often through utility programs. For current offers, visit ice-air.com/rebates.
Because it is fully electric and highly efficient, the iCool-XC™ reduces on-site emissions and supports building electrification initiatives that align with NYC Local Law 97 and LEED® green-building criteria.
- Voltage: 208 V
- Cooling Current: 3.4 A (703 W)
- Heating Current: 3.2 A (670 W)
- Electric Heater: 1,000 W / 4.8 A
- MCA: 14.6
- MOCP: 15 A
The iCool-XC™ weighs approximately 84 pounds and moves about 310 CFM of air, with an optional outside-air intake of 40 CFM for fresh-air mixing.
Yes. The product can be ordered as Style A or Style B, each featuring distinct aesthetic options for installation layout to coordinate with project design requirements.
Yes. The iCool-XC™ belongs to Ice Air’s Electrified Product Family, which includes cold-climate SPXC, RSXC, HPWH, and VSHPGE series and other solutions designed to support HVAC electrification and building decarbonization.
Yes. Habitat Smart Technologies thermostat solutions can be paired with fan coil units and other Ice Air equipment to enable wireless smart control without opening walls to run new wiring.
Specific warranty terms are not listed in the brochure. For details on standard and extended warranty coverage, please contact Ice Air Sales at sales@ice-air.com or call 877-ICE-AIR-1 (877-423-2471).
Professional training and continuing-education resources are available through Ice Air’s CEU Webinar Series, which covers the role of HVAC electrification in building decarbonization. Visit iceairceu.com for schedules and details.
