Turning cold air into hot water sounds like magic, but Ice Air’s heat pump water chiller/heater technology actually relies 100+ year old refrigeration principles to turn cold air into hot water. Although refrigeration and cooling go hand-in-hand, the refrigeration circuit also includes a hot side opposite the cold side. Typically, cooling an inside space means heating up outside air – but to use refrigeration to heat something (like water), the cycle is reversed which cools the outside air while absorbing the environment’s energy.
Category: Air-Source Cold Climate Heat Pump Domestic Hot Water Heater/Chiller
Products: ccHPWH275-SC, ccHPWH550-SC
Specifications
| Model | ccHPWH275-SC | ccHPWH550-SC | ||
| Performance Specifications | Input Power | 208-230V/3Ph/60Hz | 208-230V/3Ph/60Hz | |
|---|---|---|---|---|
| Refrigerant Circuits | 2 | 4 | ||
| Refrigerant/ Quantity | R410A (30.8 Lbs / 15.4 Lbs per circuit) |
R410A (61.7 Lbs / 15.4 Lbs per circuit) |
||
| Max H/W Temperature | 140°F | 140°F | ||
| Dry Bulb Temperature (68°F) Wet Bulb Temperature (59°F) Inlet Water Temperature (59°F) Outlet Water Temperature (131°F) |
Cooling Capacity (Btu/H) | 327,189 | 681,492 | |
| Input Power(kW) | 21.74 | 45.19 | ||
| COP | 4.41 | 4.42 | ||
| Dry Bulb Temperature (45°F) Wet Bulb Temperature (43°F) Inlet Water Temperature (48°F) Outlet Water Temperature (131°F) |
Heating Capacity (Btu/H) | 265,210 | 552,398 | |
| Input Power(kW) | 22.3 | 46.4 | ||
| COP | 3.48 | 3.49 | ||
| Dry Bulb Temperature (10°F) Wet Bulb Temperature (7°F) Inlet Water Temperature (43°F) Outlet Water Temperature (131°F) |
Heating Capacity (Btu/H) | 171,378 | 356,958 | |
| Input Power(kW) | 22.6 | 46.9 | ||
| COP | 2.22 | 2.23 | ||
| FLA (A) | 103.7 | 204.4 | ||
| MCA (A) | 134.6 | 254.4 | ||
| MOCP (A) | 175 | 300 | ||
| Sound Level (dBA) | ≤73 | ≤75 | ||
| Water Data | Condenser Type | Single Wall BPX | Single Wall BPX | |
| Water Side Pressure Loss (psig) | 11.7 | 16.51 | ||
| Rated Water Flow (GPM) （DB/WB:45°F/43°F,Inlet/outlet: 104°F/113°F) |
59.4 | 118.9 | ||
| Single pass delta-T (F) (OA_temp=68°F, LWT=131°F) | 10.53 | 11.00 | ||
| Piping Position | Rear | Rear | ||
| Piping Sizes | 2″(DN50) | 3″(DN80） | ||
| Minimum Ambient Operating Temperature (°F) | -13 | -13 | ||
| Overall Dimensions [L x W x H] (inches) | 81 x 39 x 89 | 95 x 51 x 89 | ||
| Net Weight (Lbs) | 1,555 | 2,950 | ||

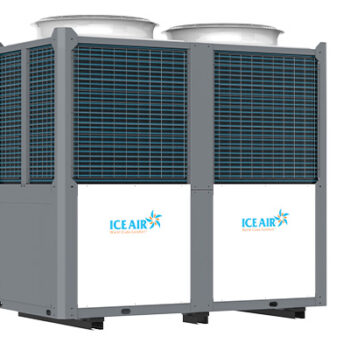

ccHPWH | Cold Climate Heat Pump Water Heater
